全自动洗脱机系列 |
|
|

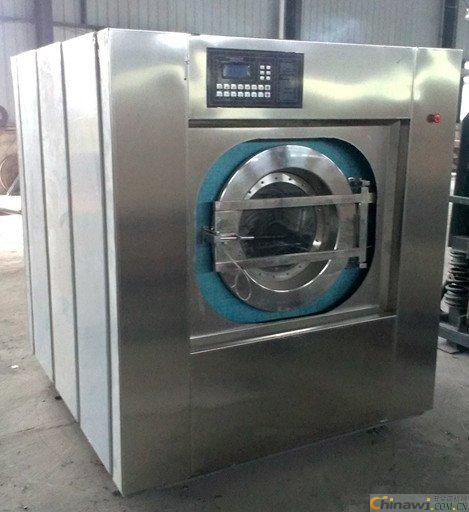

XGQ系列全自动洗脱机是我厂新推出的全悬浮式工业洗衣机系列，以独特的IC减振结构和液压阻尼技术，有效地解决了洗衣机脱水的震动问题，实现了超低震动，运行采用变频驱动，速度调节平滑，灵活，噪音低，而且搭载大屏幕液晶电脑控制器，实现人机对话，洗涤程序随意读写，洗涤过程一目了然，操作方便，性能优越，是各宾馆、饭店、洗衣房的选择。
技术参数：
| 型号Type |
XTQ-15 |
XTQ-20 |
XTQ-30 |
XTQ-50 |
XTQ-70 |
XTQ-100 |
| 额定容量Rated capacity(kg) |
15 |
20 |
30 |
50 |
70 |
100 |
| 最小Min.(kg) |
10 |
15 |
25 |
35 |
50 |
80 |
| 最大Max.(kg) |
15 |
20 |
30 |
50 |
70 |
100 |
| 内胆尺寸Inner dimension |
|
|
|
|
|
|
| 直径Diameter(mm) |
650 |
750 |
895 |
1080 |
1200 |
1200 |
| 径深Diameter deepness(mm) |
450 |
450 |
450 |
625 |
650 |
850 |
| 体积Volume(Lit) |
149 |
199 |
332 |
572 |
735 |
995 |
| 外形尺寸Overall dimension |
|
|
|
|
|
|
| 高Hight(mm) |
1510 |
1600 |
1700 |
1900 |
1960 |
2000 |
| 长Length(mm) |
1010 |
1150 |
1550 |
1850 |
1750 |
2050 |
| 宽Width(mm) |
1100 |
1110 |
1550 |
1650 |
1750 |
1750 |
| 转笼速度Drum speed |
|
|
|
|
|
|
| 洗涤转速Washing rotate speed(r/min) |
50 |
50 |
36 |
36 |
35 |
31 |
| 均布转速Uniformity speed(r/min) |
90 |
90 |
72 |
75 |
70 |
65 |
| 中脱Mid speed(r/min) |
450 |
450 |
420 |
380 |
350 |
310 |
| 高脱High speed(r/min) |
900 |
900 |
780 |
760 |
680 |
680 |
| 排水阀Draining valve |
|
|
|
|
|
|
| 排水阀Draining valve(mm) |
φ70 |
φ70 |
φ76 |
φ90 |
φ90 |
φ90 |
| 进水管Filling with water |
|
|
|
|
|
|
| 热水管Hot water pipe(") |
3/4 |
3/4 |
1 1/2 |
1 1/2 |
1 1/2 |
1 1/2 |
| 冷水管Cold water pipe(") |
3/4 |
3/4 |
1 1/2 |
1 1/2 |
1 1/2 |
1 1/2 |
| 蒸汽管Steam pipe |
|
|
|
|
|
|
| 蒸汽管Steam pipe(") |
3/4 |
3/4 |
3/4 |
1 |
1 |
1 |
| 每缸耗气量Air consume capacity(kg) |
15 |
18 |
20 |
30 |
45 |
50 |
| 洗涤耗水量Washing water consume capacity(kg) |
300 |
400 |
500 |
750 |
1200 |
1500 |
| 电源Power supply |
|
|
|
|
|
|
| 电源Power supply |
380V+N-3PH-50HZ |
| 电机功率Motor power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
| 电加热功率Electric heat up consumption(kw) |
10 |
15 |
20 |
30 |
45 |
60 |
| 机器重量Machine weight |
|
|
|
|
|
|
| 重量(约)Weighe(kg) |
950 |
1200 |
1500 |
2300 |
2500 |
3000 | |
| |
|
|
|
